SOLID TBS6304 HD HDMI Capture Card


comes with HDMI1.4 port, completely supports full HD Video and Audio capture and playback. It provides the highest quality HDMI input, and meets the HDMI 1.4 standard, satisfies the 1080P resolutions and can capture the LPCM audio signals in HDMI. You can easily capture signals from different kinds of devices by TBS6304 HDMI Capture Card without limitation

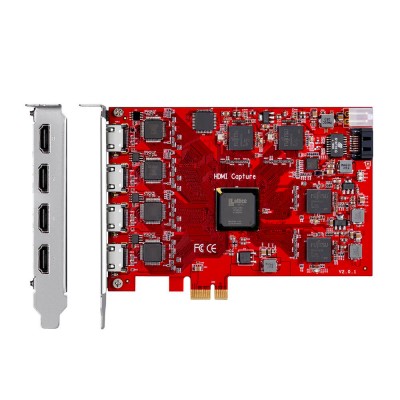

Pro Quad HD HDMI Capture Card (TBS6304)

TBS recently releases a high and standard definition capture card with quad HDMI 1.4 inputs and H.264 hardware compression. Users can easily capture SD/HD signals from different kinds of devices by this Pro Quad HDMI Capture Card without limitation.

Enjoy True HD 1080P
Pro Quad HD HDMI Capture Card supports quad HDMI/HDCP inputs displaying up to 1080i resolution and compacts audio/video/composite/component (1080i) interface for transmitting digital data. It also supports to capture or record HD content in H.264 format from PS3, Xbox 360 and digital camcorders.

Applications:

• IPTV Servers

• Datacasting and monitoring

• Live TV Capturing and streaming

• Broadcast TV



Features:

• Quad HDMI inputs

• Max. input resolution 1920 x 1080 60fps

• Compliant with HDMI 1.3, HDMI 1.4a, HDCP 1.4

• H.264 hardware compression

• 10-Bit absolute encoding

• Windows & Linux support



H.264 Hardware Compression with low CPU Consumption Solution

Equipped with an advanced built-in H.264 hardware encoder that enables the system not to utilise CPU's computing ability while maintaining high quality video encoding. This feature balances the load, thereby improving the reliability of the system.

The TBS Pro Quad HD HDMI capture card is used as a DVB tuner system device, built into the H.264 encoder that supports HDCP, and provides adjustable resolution and bit rate options. You can easily apply it to IPTV streaming servers of headend systems.



4 x Real HDMI Digital Interface

TBS HD HDMI Capture Card provides 4 HDMI inputs of the highest quality video. It meets the HDMI 1.4 standard and can be able to capture the LPCM audio signals.



Flexible Extension for 8 Inputs:

Strong expandability, it can connect additional cards through SATA cables without using a second PCI-E slot, which can be expanded to 8 HDMI capture cards.



Intuitive User Interface for Effective

Management of TS Stream Outputs

TBS Pro Quad HD HDMI Capture Card supports automatically detecting the signal source. With TBS encoded setting tool, it can easily switch between channels and adjust configurations, offering better TV viewing experience.
