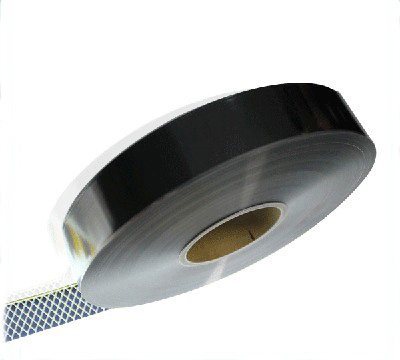

Metallized Safety Film For Capacitor Use

Electronics & Electrical - Electronics Components

Product Description

1.Basic Information
(1)MPP Film Type: Metallized Polypropylene Film For Capacitors
(2)Width:4.5-130mm
(3)Thickness:1.6-12um
(4)Margin Value:0.5mm 1.0mm 1.5mm 2.0mm 2.5mm
(5)Specification:Metallized Film For Capacitors
(6)Types Of Metallized Layer:Al Metallized Film、Zn/Al Metallized Film
(7)Density: 0.905+/-0.005g/cm3
(8)Processing Type:Vacuum Coating Capacitor Film
(9)Trade Mark :CSF
(10)MOQ:1 Kilogram
(11)Delivery Detail:7~15 Days After Payment
(12)Packaging Details :To be shipped in vaccum-sealed metallized plastic bags
(13)Transport Package:Vaccum Package For Standard Export Carton
(14)Port :Shanghai Or Ningbo
(15)Origin:Tongling City,Anhui Province,China(Mainland)

2.Products Types
(1)Single margin Opp film with one side Zn-Al metallized
(2)Single margin Opp film with slope resistance one side Zn-Al metallized
(3)Single margin Opp film with high resistance one side Zn-Al metallized
(4)Segmented metallized film
(5)Middle margin PET film with double sided Al metallized
(6)Single margin OPP film with one side Al metallized
(7)Double margin OPP film with one side Al metallized
(8)Multi-margin OPP film with one side Zn-Al metallized
(9)We can design and produce all kinds of metallized film for capacitors according to customer's requirement

3.Normal Specification
(1)Item:Metallized Polypropylene Film
(2)Thickness(um):2/3/4/5/6/7/8/9/10/12
(3)Width(mm):14/17.5/21/26/30/35/37.5/40/45/50/55/60/65/70/75/80/85/90/95/100/115/120/125/130
(4)Margin Value(mm):1.0/1.5/2.0/2.5/3.0
(5)ID(mm):75
(6)OD(mm):180/240/270/320
Note:Other specifications and sizes of metallized bopp capacitor film which are not in the above table can be negotiable.

4.Packing
(1)Film rolls are packed and heat-sealed in vacuum plastic bags with desiccants inside
(2)The bags are marked with type labels
(3)The bags are packed in carton cases
(4)The cartons are wrapped in wooden cases or reinforced carton

5.Storage
(1)Metallized film should be stored in its original package with temperature 5~35ºC and humidity less than 85%RH before using.
(2)Metallized layer is easily oxidized when exposure to moisture.Therefore,the film should be used as soon as possible when opened.
(3)The recommended temperature is 15-25ºC with humidty less than 60%RH after opening.
(4)With original sealed package,and stored as mentioned above,the storage time can be as following:
Al metallized film:12 months from the delivery date.Al/Zn Alloy metallized film :As zinc is quite unstable,the storage period(from delivery date) depends on the resistance of the film:
≦10Ω:6 months
10-30Ω:3 months
>30Ω:1 month

6.Our Advantages
(1)Leading Technology
*Professional manufacturing capacitor film for decades;Adopt advanced technology to ensure the reliability of products;A number of professional invention patents.
(2)High Quality Products
*Buy new equipment;Continuous innovation in the traditional production process; Quality management service center,quick response service within 24 hours.
(3)Fast Delivery
*Experienced management team,can adjust the flexible delivery time according to customer demand.
(4)Government Support
*Our company was awarded “National High-tech Enterprise ”for three consecutive years;2018 National Intellectual Property Advance Enterprise;2019 Tongling advanced group award.
