Teledyne LeCroy ZD1500: High-Performance Differential Probe for Precision Measurements - Best Price at Jansen Calibration .

Product Overview:

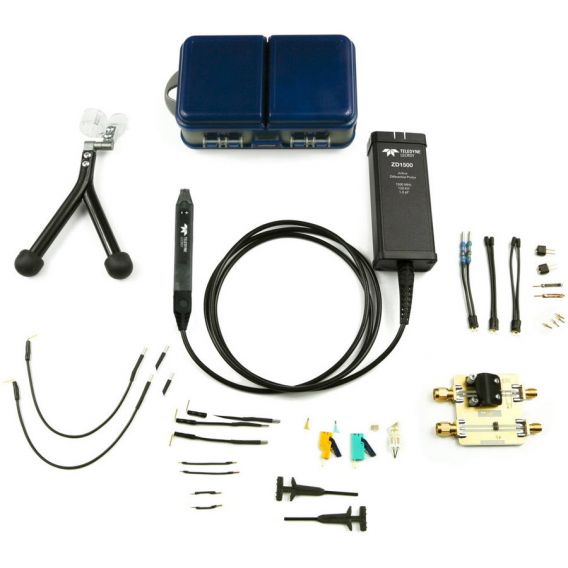

The Teledyne LeCroy ZD1500 is an active differential probe designed for high-speed signal measurements. With a bandwidth of 1.5 GHz, it is ideal for capturing fast-rising and falling edges in digital and analog circuits. The probe features a low input capacitance of 1 pF and a high input impedance of 120 kOhm, minimizing loading effects on the circuit under test.

Features:

Bandwidth: 1.5 GHz
Input Capacitance: 1 pF
Input Impedance: 120 kOhm
Maximum Input Voltage: 8 V
Differential and Single-Ended Measurements
Auto-Zero and Calibration
Compact and Lightweight Design

Specifications:

Bandwidth: 1.5 GHz (-3 dB)
Rise Time: <230 ps
Input Capacitance: 1 pF ±0.1 pF
Input Impedance: 120 kOhm ±5%
Maximum Input Voltage: 8 V (DC + peak AC)
Common Mode Rejection Ratio (CMRR): >80 dB at 1 MHz
Differential Gain Accuracy: ±1%
Offset Voltage: <5 mV
Power Supply: 12 V to 15 V DC
Dimensions: 100 mm x 40 mm x 20 mm
Weight: 100 g
