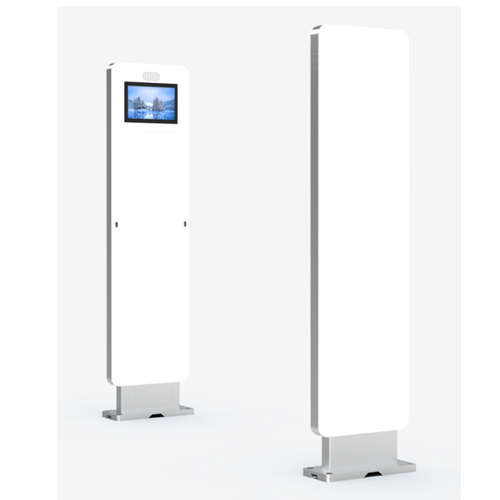

The YND-E02A is a high-performance UHF channel gate designed with an advanced reading/writing engine, fully supporting electronic tags compliant with the EPCglobal C1 Gen2 ISO 18000-6C standard. It is widely applicable in logistics, access control, apparel, retail, warehousing, anti-counterfeiting, smart manufacturing, and other RFID systems.

(Image placeholder)

High Recognition RateUnique Antenna DesignMulti-Function AlarmCustomizableDurabilityData CommunicationProduct Specifications
ModelMaterialAppearanceDimensionsLED Light BarInfrared SensorsInstallationPerformance Parameters
865868MHz / 902928MHz (adjustable per region)
Software-adjustable (±1dB step, max 33dBm)
10,000 tags (@96-bit EPC)
Master-Slave / Standalone / Trigger Mode
Supported
5W24W
10.1-inch capacitive touch (1280×800 resolution)
Android 11
RK3568
4GB RAM + 16GB ROM
TCP/IP, DHCP, SSH, FTP, Telnet, UDP
Adapter: AC 100240V/5060Hz → DC 12V/5A; DC 1224V/5A
RS-232, TCP/IP, Wi-Fi
RJ45
C#, Java, Android
Master-Slave / Standalone / Trigger Mode
Operating TemperatureOperating Voltage AC 220V ±10%
