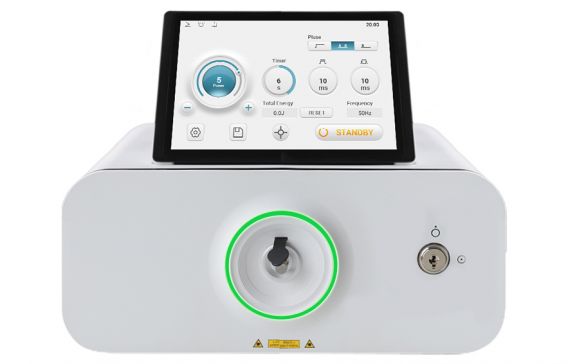

Multi-Application Surgical Laser

Health Care - Medical Equipments

Product Description

Technical Specifications:
Wavelength: 980nm+1470nm+1940nm
Power: 30-60W+ 20W+ 6W
Aiming Beam: 650nm < 2mW
Fiber Connection: 400um and 600um Fiber with SMA905 connector
operating Modes: Continuous Wave(CW) / Pulsed
Power Supply: 100 ~220 VAC,500VA, 50/60 Hz
Dimensions (L*W*H): 400mm * 370mm * 260mm
Weight: 7KG NW
The laser complies with the following standards:
IEC 60601-1:2005 +A1:2012
IEC 60601-1-2:2014
IEC 60601-2-22:2012
IEC 60825-1:2014

Applications:
ENT Precision Microsurgery
Endovenous Laser Therapy(EVLT)
Orthopedics (PLDD)
Nail Fungus
Lipolysis
Proctology
Gynaecology

M2--Reliability from Top-level Technologies
The 1470nm and 980nm can be selected individually or blended together.
While choosing laser modules from world-class laser diode supplier, Pioon has developed and
patented the Original Advanced Laser Stabilization System for the 1940nm phlebology
System.
Unique Customized medical Laser module achieves controllability一Technology and Cost.
The liquid cooling system ensures stable and continuous power delivery.
World's First to combine the medical laser with intelligent operation system.
