GATE VALVE SEAL 304
106 views
Description

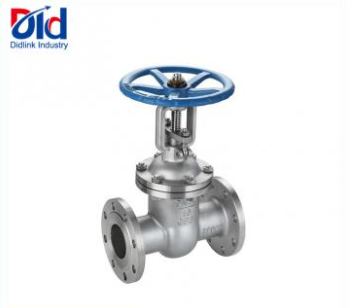

Name:Din Stainless Steel Gate Valve Rising stem,doublegate valve, gate valve seal 304
Design confirms:DIN3352
Flanges drilled confirms:DIN2501/EN1092-2 PN10/16/25
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14
Normal pressure:1.6MPa
Shell test pressure:2.4Mpa
Seal test prressure:1.76Mpa
Sultable medlum:Chemical, Petrochemical, Oil & Gas, Power Plant, GeneraIndustry etc
Working temperature:-196 to 650 centigrade
Body/Bonnet/Dlsc:CF8,CF8M,CF3,CF3M
DISC:CF8,CF8M,CF3,CF3M
Stem:F304,F316,F304L,F316L
GLAND FLANGE:CF8,CF8M,CF3,CF3M
