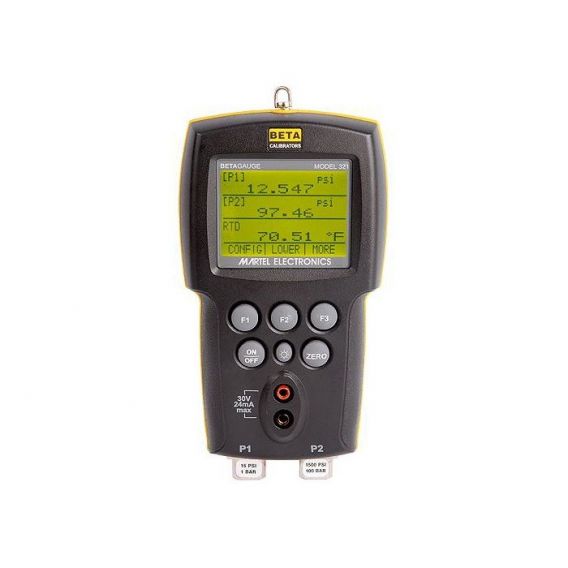

Martel Electronics 321A-15CV-30A

Industrial Machinery and Equipment - Machine Tools

Product Description

Price : USD $1,467 /unit.

Min Order : 1 unit.

Please contact us or visit our company allocalibration , com, For more specifications information, packaging and orders product.

DESCRIPTION
With this product, you’ll have everything you need for calibrating pressureanywhere. Gas custody transfer is the ideal application for the accuracy and capabilities of the BetaGauge 321A. This unit is supplied with soft case, AA batteries, manual, NIST-traceable certificate, and test leads. The improved ‘A’ version provides enhanced features over the predecessor, including a Power-Tool-Tough case, custom engineering units, user-adjustable resolution, and enhanced stability.

15 PSI CV 30 PSI Absolute
Two isolated, stainless steel, pressure sensors with 0.025% F.S. accuracy
Temperature-compensation ensures accuracy in the field applications
External pressure module connection supports all BetaPort-P pressure modules (27 ranges) for even more measurement capability
Pt100 RTD input for temperature measurement, accurate to 0.1°C (0.2°F)
Measure 4-20 mA input
Internal 24 V Loop Power Supply can power a transmitter under test
Measure up to 30 V DC
Large graphic style LCD with backlight can be configured to display up to 3 inputs simultaneously (i.e. pressure 1, pressure 2, and RTD or any combination of inputs)
Ideal for gas flow calibration (custody transfer) applications
Pressure displayed in the user’s choice of 17 engineering units plus custom
Switch test on Pressure 1, Pressure 2, or external pressure module
Operating mode layers support simple measurements to complex applications
Up to five frequently used setups can be stored, last setup automatically recalled on power-up
% Error and damping functions
Small, rugged compact design operates on four (4) standard AA batteries
