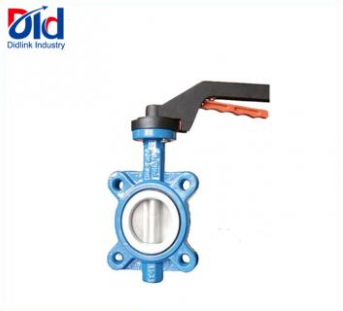

ALUMINUM HANDLE PN16 BUTTERFLYVALVE DESIGN STANDAR

Name:Aluminum Handle Pn16 Butterfly Valve Design Standards API609, 100mm butterfly valve Design confirms:API 609, BS EN 593, MSS SP-67, BS5155 Top Flange:ISO5211 or factory standard API 598, ISO 5208, EN12266-1, DIN3230, BS5155 Tightness check:API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67, DIN3202 Face-to-face conform:PN10/PN16/PN25 or Normal pressure:10Bar/16Bar/25Bar or class125/150 Nominal dlameter:DN25~DN1200 (1 Operator:Handle lever, worm gearbox(reducer), electric or pneumatic actuators etc Sultable medlum:Petroleum, chemical industry, water, oil, gas etc Working temperature:-45 to 200 Celsius Cast Iron(CI): ASTM A126CL. B, DIN1691 GG25, EN 1561 EN-GJL200,GB12226 Body/Dlsc:HT200; Ductile Iron(DI): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10 Zinc Plated Carbon Steel; Stainless Steel: ASTM A276 Tyype Stem:316/304/410/420, ASTM A582 Type 416 Seat:NBR, EPDM, Neoprene, Viton, PTFE, BUNA, Hypalon Bushlng:PTFE, Nylon, Lubricated Bronze
