Industrial Air Cooled Chiller CW5000

Industrial Machinery and Equipment - Other Machinery

Product Description

cw5000 chiller Manufacturer
Buy from S&A manufacturer
Distributor in US
Fast Delivery, 2 Years Warranty, Get a Quotes Now!

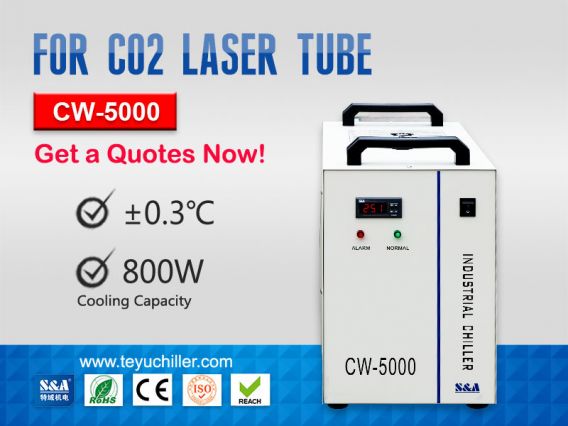

Industrial air cooled chiller CW-5000 is very popular among CO2 laser cutting machine users and it is the best selling refrigeration type water chiller unit produced Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A), a professional China-based chiller unit manufacturer with 16-year experience.

Small industrial water chiller CW-5000 has small size, but its cooling performance can not be overlooked. It features cooling capacity of 800W and the temperature stability of ±0.3℃. Small size and excellent cooling performance makes industrial water chiller unit CW-5000 a perfect choice for CO2 laser cutting machine users who don’t have too much working space.

In addition, Industrial air cooled chiller CW-5000 is charged with environmental friendly refrigerant R-134a in order to protect the environment, which shows S&A is an environmentally responsible enterprise.

To guarantee the product quality, Small industrial water chiller CW-5000 has to go through a series of strict simulated laboratory tests and the core components such as evaporator, condenser and sheet metals are independently developed by S&A.

Small industrial water chiller CW-5000 offers 220/110V 50/60Hz so that it has wider access to users in different countries. Besides, it has multiple alarm functions, such as compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm so that the chiller can be well protected.

For better refrigeration performance, it is suggested to use purified water or clean distilled water as the circulating water and replace it every 3 months.

Specification:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a
Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N. W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)

About S&A Brand
S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.

Why choose S&A
Product Advantages:
1. With 11 patent certificates,ISO, CE, RoHS and REACH compliant; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1. Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%;
3. Standard bulk production, standard parts rate up to 80% ;
4. With excellent laboratory testing system, simulates actual working environment for chiller.
