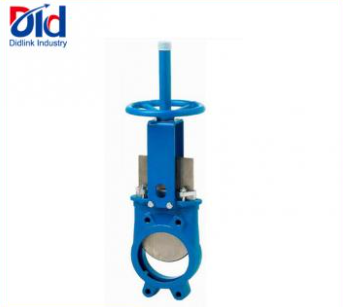

WAFER DUCTILE IRON MANUAL KNIFE GATE VALVE 1 2, AU

Industrial Machinery and Equipment - Other Machinery

Product Description

Name:Wafer Ductile iron Manual Knife gate valve 1 2, automatic |Knife gate valve
Pressure:PN10 & 150PSI &JIS10K
Slze range:Standard from DN50 to DN1200 & 2
Body:GGG40,WCB+solid solution,CF8 +solid solution,CF8M+solid solution
Gate:SS304+solid solution,SS316+solid solution
Stem:SS420;F304+solid solution, F316+solid solution
Pneumatic:ANSI 1045+chrome plated
Seat:EPDM,Metal, Viton,PTFE,NBR
Support plate:A36+epoxy baked
Operated type:Handwheel, Pneumatic,Gear, Bare shaft
Structure:Uni-directional & Bi-directional.
Standard flange connectlon: EN1092 PN10 & ANSI B16.5(class 150) & JIS (10K).
Maximum working
DN 50 to DN 250: 10 bar ,DN 300 to DN 450:7 bar ,DON 500 to DN 600:4
bar, DN 700 to DN 900: 2 bar,DN 1000 to DN 1200:1 bar
pressures::
Maximum working temperatures:Nitril:80°C, NBR:110 °C,EPDM:110°C, PTFE:150 °C
