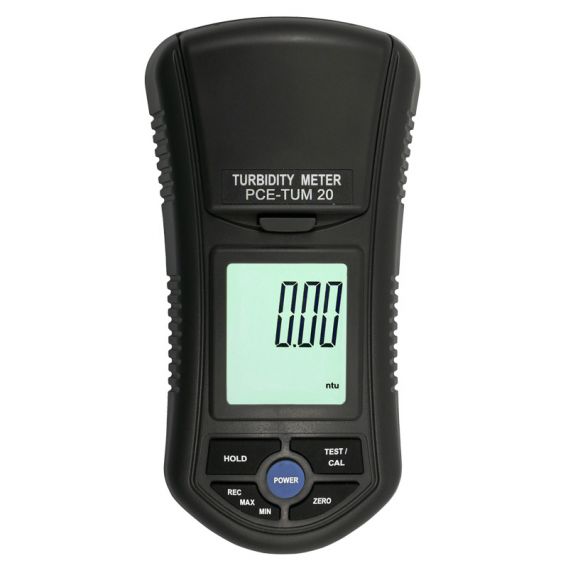

Turbidity Meter PCE-TUM 20

Lab Instruments - Lab Equipments

Product Description

PCE-TUM 20 is a portable handheld turbidity meter or turbidimeter for water quality analysis. This turbidity measuring device is equipped with a large LCD screen and user-friendly keyboard. The turbidity meter features two automatically switching measuring ranges between 0 ... 50 NTU and 50 ... 1000 NTU for increased accuracy. Using the included calibration references of 0 NTU and 100 NTU, the meter can be adjusted at any time. (Note: NTU stands for Nephelometric Turbidity Unit.)

Inside the meter, there is an infrared LED light source with a wavelength of 850 nm. A photodiode positioned in a 90° angle to the measuring ray absorbs the light reflected by the particles in the dissolution. Diffused light or Nephelometric measuring methods are used for the lower measuring range. For the higher measuring range, an additional photodiode is positioned at the opposite side; therefore, measurement is performed via the transmitted light method.


- Portable
- High accuracy
- Large LCD screen
- User-friendly keyboard
- Displays turbidity measurements in NTU

Measuring range 0.00 to 50.0 NTU and 50 to 1000 NTU
Resolution 0.01 and 1 NTU
Accuracy ± 5 % from measuring range or ± 0.5 NTU
Light source LED, infrared at 850 nm
Lifetime Almost unlimited
Light detector Photodiode
Measurement time < 10 sec.
Power supply 6 x 1.5 V AAA batteries
Operating conditions < 50 °C / 122 °F, < 85 % RH
Dimensions Approx. 155 x 76 x 62 mm / 6.1 x 3.0 x 2.4" (H x W x D)
Weight Approx. 320 g / 0.71 lb

1 x PCE-TUM 20 turbidity meter
1 x calibration reference (0 NTU)
1 x calibration reference (100 NTU)
2 x measuring cuvettes
1 x cleaning solution
1 x cleaning cloth
6 x batteries (1.5 V AAA)
1 x user manual
1 x carrying case
