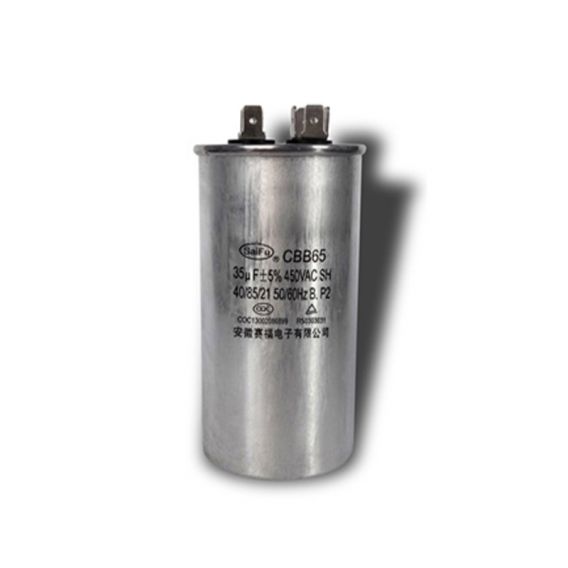

*Product Description*
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.
The elements of CBB65 Capacitor are tightly wind by high-velocity winders and canned in aluminum cases.
The second generation of machine anti-explosion design is selected ad blast -proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.

Technical Specifications
Model NO. CBB65 Capacitor
Type Air Conditioner Compressor Capacitor
Structure Single Capacitor
Manufacturing Material Polypropylene
Electrolyte Polypropylene Film
Reference Standards GB/T 3667.1(IEC60252-1)
Climatic category 40/70/21,40/85/21
Class of operation Class B(10000h)  Class C(3000h)
Class of safety production S2
Voltage range 220VAC 370VAC 440VAC 450VAC
Capacitance range 2~100UF
Capacitance tolerance ±5% ±10% ±15%
Dissipation factor 20*10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT 2 Un for 2 seconds
Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance ≥3000MΩ.uF(100Hz,20ºC,1min)
Altitude ≤2000m
Remain voltage when put into operation No more than 10% of rated voltage
Maximum allowed voltage No more than 1.1 times rated voltage
Maximum allowed current No more than 1.3 times rated current
Package Type Export Standard Carton for CBB65 Capacitor
Production Capacity 3500,000PCS/Month
MOQ 1PCS
Size Negotiable
* Note:The Composite Capacitor can be also customized producing according to our customer's request.

*Dimensions(mm)*
No Specifications Terminal Size
1 CBB65-450VAC 2μF ~9μF 2×4 or 2×2 pin Φ40×60
2 CBB65-450VAC-10μF 2×4 or 2×2 pin Φ40×60
3 CBB65-450VAC-12.5μF 2×4 or 2×2 pin Φ40×70
4 CBB65-450VAC-15μF 2×4 or 2×2 pin Φ45×70
5 CBB65-450VAC-20μF 2×4 or 2×2 pin Φ45×75
6 CBB65-450VAC-25μF 2×4 or 2×2 pin Φ50×85
7 CBB65-450VAC-30μF 2×4 or 2×2 pin Φ50×100
8 CBB65-450VAC-35μF 2×4 or 2×2 pin Φ50×100
9 CBB65-450VAC-40μF 2×4 or 2×2 pin Φ50×100
10 CBB65-450VAC-45μF 2×4 or 2×2 pin Φ50×100
11 CBB65-450VAC-50μF 2×4 or 2×2 pin Φ50×125
12 CBB65-450VAC-55μF 2×4 or 2×2 pin Φ50×125
13 CBB65-450VAC-60μF 2×4 or 2×2 pin Φ50×125
14 CBB65-450VAC-65μF 2×4 or 2×2 pin Φ55×125
15 CBB65-450VAC-70μF 2×4 or 2×2 pin Φ55×125
16 CBB65-450VAC-80μF 2×4 or 2×2 pin Φ60×125
17 CBB65-450VAC-90μF 2×4 or 2×2 pin Φ60×125
18 CBB65-450VAC-100μF 2×4 or 2×2 pin Φ63.5×125
* Note:Other specifications,size,terminal outside table and price are negotiable.

*Appearance & Application*
Installation Type: Surface Mount
Shape: Cylinder or Ellipse
Capacitor Case: Aluminum Case
Application: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc.
CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

*Packing&Delivery*
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~10 days after payment
Port: Shanghai or Ningbo

*Advantages*
1.Leading tachnology: Our quality management system are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications.
2.Reliable productivity: Our company now has 3 high-vacuum coating machines,10 high-speed Sillting machines,6 winding machines and for -gun gold spary system and other automatic equipments.
3.Reasonable price: Executive"Industrial products 10% Profit in the first."
4.Large inventory: This is the guarantee of the timely delivery.
5.Fexible production: User-specific products,starting from the next single.
6.Cordial service: 7*24 hours online,prompt reply and timely delivery.
