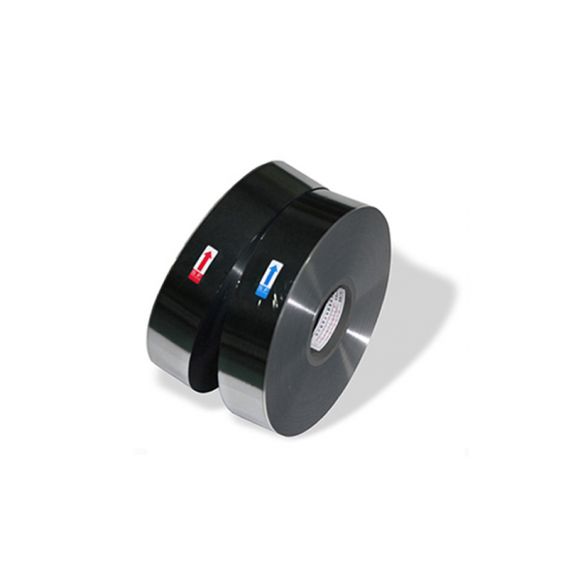

Metallized Film for Capacitor Use

Electronics & Electrical - Electronics Components

Product Description

*Product Description*
1.We mainly offer finished capacitor film: Aluminum/Zinc metallized film with reinforced edgefor capacitors used.
2.We can supply you metallized polyester/Polypropylene Film for capacitors(MPET/MPP film) .
3. We also can offer you Capacitor Polypropylene Rough film type RPP/RRPP.

Technical specifications
Model  MPP(Metallized Polypropylene Film)
Material  BOPP
Hardness  Soft
Transparency  Opaque
Processing Type  Multiple Extrusion
Thickness  1.6-15um
Width  4.5-130mm
Density  0.905±0.005 g/cm3
MOQ  1 kilogram
Margin Value  0.4mm 1mm 1.5mm 2mm 2.5mm
Production Capacity  150 Tons Per Month
Types of Matallized Layer  Al/Zn Metallized Film, Al Metllized Film
Size  Negotiable
*Types of Matallized Layer: Slope Metallized Film,High Square Resistance Film,Single-Sided Margin,Al/Zn Heavy edge Film(Single Sided),Double-Sided And Central Margin Film,Both Sides Metallized Film, Pattem Film Segmented+T Margin,Pattem Film T Margin.

*Dimensions(mm)*
Item Thickness
(um) Width(mm) Margin Value(mm) ID(mm) OD(mm)
Metallized Polypropylene Film 2.0,2.2,2.3,2.4,2.8,2.9,3,4,5,6,7,
8,9,10,12 14 ,17.5,21,26,30,35,
37.5,40,45,50,55,60,
65,70,75,80,85,90,
95,100,115,120,125,130 3.0, 2.5 , 2.0, 1.5,1.0 75 180,240,
320
*Note:Other specifications,size,terminal outside table and price are negotiable.

*Application*
Applied to capacitors for power system, refrigerators and air conditioners.

*Type Of Metallized Film*
1.Aluminum metalized polypropylene film.
2.Aluminum-Zinc alloy metalized polypropylene film.
3.Aluminum-Zinc alloy metalized polypropylene film with heavy edge.
4.Aluminum metalized polyester film.
5.Aluminum-Zinc alloy metalized polyester film.
6.Aluminum-Zinc alloy metalized polyester film with heavy edge.

*Specifications of Metallized film*
*Cores:
Material:Plastic
Width:Film Slit Width±0.3mm
Inner Diameter:75mm +1.0mm/-0.5mm

*Specifications of MPP Film:
Properties Unit Typical value
Density g/cm3 0.905±0.005
Thickness µm 1.6 ~ 15
Tensile Strength Longitudinal
MD (MPa) ≥100
Elongation at Break Longitudinal
MD (%) 20~200
Elastic modulus Longitudinal
MD (MPa) 2800
Heat Shrinkage Longitudinal
MD (%) ≤5 ( 120°C, 10min)
Wetting tension mN/m 38  (Corona treated side)
Surface roughness µm 0.08
Melting point ºC 172
Volume resistivity Ω.m >1015
Break-dowm voltage V/µm ≥350 ( 23°C, DC )
Dielectric constant
2.2  (20ºC,1KHz)
Dissipation Factor
≤4×10-4 (20ºC,1KHz )
RC ΩF ≥5×104

*Specifications of MPET Film:
Properties Unit Typical value
Density g/cm3 1.4
Thickness µm <5 5~12 ≥12
Tensile Strength Longitudinal MD(MPa) ≥84 ≥108 ≥120
Elongation at Break Longitudinal
MD (%) ≥22 ≥33 ≥44
Elastic modulus Longitudinal
MD (MPa) 3500
Break-dowm voltage V/µm ≥200
( 23°C, DC ) ≥250
( 23°C, DC )
Heat Shrinkage Longitudinal
MD (%) ≤2.5 ( 150°C, 10min)
Surface roughness µm 0.095
Melting point ºC 256
Volume resistivity Ω.m >1015
Dielectric constant
3.2
Dissipation Factor - ≤60×10-4
RC ΩF ≥1×104

*Packaging & Delivery*
Packaging: Pallets
Packaging Details: Vacuum Aluminum Package (Metallized Film Export Standard Carton)
Delivery Detail: 7~10 days after payment
Port: Shanghai or Ningbo

*Advantages*
1.Leading tachnology: Our quality management system are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications.
2.Reliable productivity: Our company now has 3 high-vacuum coating machines,10 high-speed Sillting machines,6 winding machines and for -gun gold spary system and other automatic equipments.
3.Reasonable price: Executive"Industrial products 10% Profit in the first."
4.Large inventory: This is the guarantee of the timely delivery.
5.Fexible production: User-specific products,starting from the next single.
6.Cordial service: 7*24 hours online,prompt reply and timely delivery.

*Welcome to Contact Us*
Company Name: Anhui Safe Electronics Co.,Ltd
Add: No.1771 Qifeng Road, Shizishan National High Technology Zone, Tongling, Anhui, China
Tel: 0086 0562 2821018
Fax: 0086 0562 2821558
Mobile Phone: 0086-13305620368 (Helen Hu)
Mail Adress: helen@filmp-capacitorcom

There is no best product, only the most suitable products!
