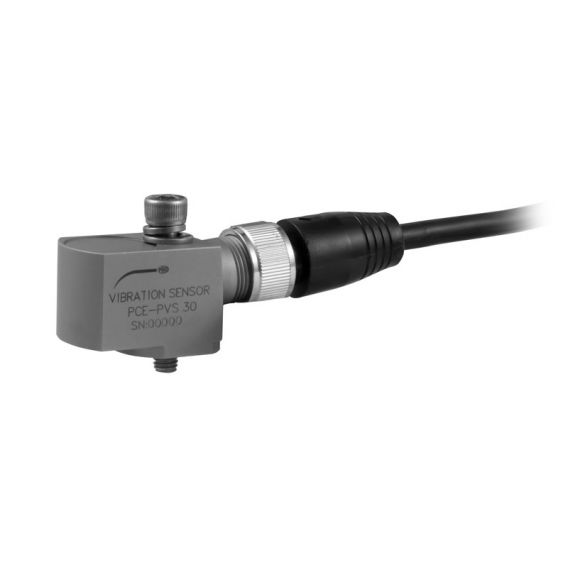

Acceleration Sensor PCE-PVS 30

The Acceleration Sensor has been developed for the continuous monitoring of the vibration speed. The Acceleration Sensor is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Acceleration Sensor measures the vibration speed in the range of ± 12.7 mm / s or ± 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz. The measured vibration speed is output as a 4 ... 20 mA process current. The Acceleration Sensor is looped through a MIL-C-5015 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Acceleration Sensor can be operated with a voltage of 12 ... 24 V DC. - horizontal or vertical installation - Process signal output - MIL-C-5015 connector - M6 process connection - different measuring ranges - robust construction Measuring range ± 12.7 mm / s frequency range 3 ... 1500 Hz output 2 conductors 4 ... 20 mA sensitivity <5% Shock limit ± 1000 g Power supply 12 ... 24 V DC in current loop Isolation from ground > 108 ohms Output impedance <100 ohms design horizontal connection Electrical connections Pin A: + 4 ... 20 mA Pin B: - 4 ... 20 mA Connection type 2 pin MIL-C-5015 operating temperatur -40 ... 85 ° C Dimensions Ø22 x51 Mounting thread M6 1 x Acceleration Sensor PCE-PVS 30 1 x MIL-C 5015 plug to 5 m cable 1 x instruction manual Get in Touch Dhanbad Lab Instruments India Pvt Ltd, Flat No-IID, Sunrise Tower, Nawadih, Po-B-Polytechnic, Dhanbad-828130, Jharkhand, India | info@dhanbadinstruments.com +91 76677-81649, +91-98355-55989
