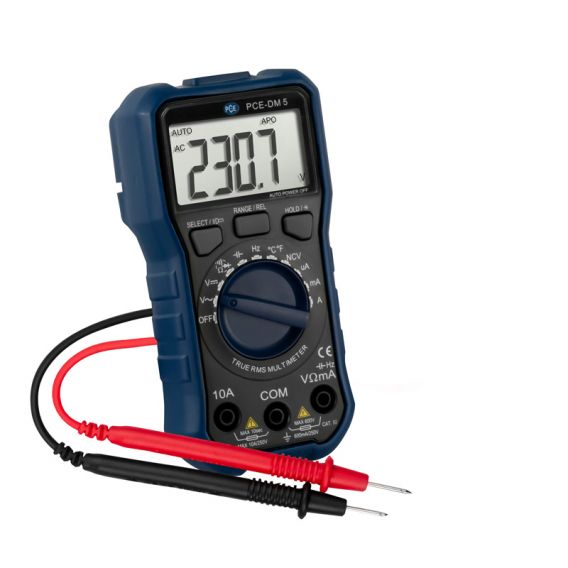

The voltmeter is a multimeter with a compact design. Because of its small design, the extensive functions of the voltmeter are not recognizable at first glance. As a main function, the voltmeter can measure voltages and currents on electrical lines, building components or also on industrial plants. A wide variety of Type-K thermocouples can also be connected and the temperature determined using this voltmeter.

The voltmeter has an NCV measuring function to quickly check whether the mains voltage is present on a line or on an electrical device. The special feature of this function with the voltmeter is that no lines have to be disconnected for the measurement. Only the voltmeter has to be held against the test object or the line.

In addition to these measurement functions, the display of the voltmeter is backlit. As a result, the measured values ??can be read from the voltmeter even under difficult conditions. If the measuring point is difficult to identify due to insufficient lighting due to a power failure, for example, the voltmeter with the built-in flashlight can remedy this. The rubber cover of the voltmeter also protects the measuring device from damage.

- Voltmeter, ammeter, NCV
- Small and compact design
- Backlight for a better view
- Flashlight for illumination
- Automatic and manual measuring range
- "Hold" function for freezing the measured value

Specifications

DC
Measuring range Resolution Accuracy
600 mV
0.1 mV ± (0.5% + 4 digits)
6V 1 mV ± (0.5% + 4 digits)
60V 10 mV ± (0.5% + 4 digits)
600V 100 mV ± (1.0% + 4 digits)

Input impedance: > 40 M? for the measuring range 600 mV; 10 M? for all
other measuring ranges
Surge protection: 600V DC / AC rms



AC
Measuring range Resolution Accuracy
6V 1 mV ± (0.8% + 6 digits)
60V 10 mV ± (0.8% + 6 digits)
600V 100 mV ± (1.0% + 6 digits)

Input impedance: 10 M?
Surge protection: 600V DC / AC rms
Frequency range for the measuring range 600V: 40 ... 1000 Hz
Frequency range for all other measuring ranges: 40 ... 2000 Hz
Display: RMS of the sine wave


Direct current
Measuring range Resolution Accuracy
600 µA 0.1 µA ± (1.0% + 5 digits)
6000 µA 1 µA ± (1.0% + 5 digits)
60-mA 10 µA ± (1.0% + 5 digits)
600-mA 100 µA ± (1.0% + 5 digits)
6 A
1-mA ± (1.0% + 5 digits)
10 A 10-mA ± (2.0% + 10 digits)

Maximum voltage drop: 200 mV
Maximum current measurement: 10 A (within a time of 10 seconds)
Fuse: 0.5 A / 250V, 10 A / 250V



Alternating current
Measuring range Resolution Accuracy
600 µA 0.1 µA ± (1.5% + 5 digits)
6000 µA 1 µA ± (1.5% + 5 digits)
60-mA 10 µA ± (1.5% + 5 digits)
600-mA 100 µA ± (1.5% + 5 digits)
6 A 1-mA ± (1.5% + 5 digits)
10 A 10-mA
± (2.0% + 10 digits)

Maximum voltage drop: 200 mV
Maximum current measurement: 10 A (within a time of 10 seconds)
Fuse: 0.5 A / 250V, 10 A / 250V
Frequency range for the 10 A measuring range: 40 ... 100 Hz
Frequency range for all other measuring ranges: 40 ... 400 Hz



Capacity
Measuring range Resolution Accuracy
60 nF 10 pF ± (2.5% + 6 digits)
600 nF 100 Pf ± (2.5% + 5 digits)
6 µF 1 nF ± (2.5% + 5 digits)
60 µF 10 nF
± (2.5% + 5 digits)
600 µF 100 nF ± (5.0% + 8 digits)
6 mF 1 µF ± (5.0% + 8 digits)
60 mF 10 µF
± (5.0% + 8 digits)

Overvoltage protection: 250V DC / AC peak value



Frequency

Measuring range Resolution Accuracy
10 Hz 0.01 Hz ± (0.5% + 4 digits)
100 Hz 0.1 Hz ± (0.5% + 4 digits)
1000 Hz 1 Hz ± (0.5% + 4 digits)
10 kHz 10 Hz ± (0.5% + 4 digits)
100 kHz 100 Hz ± (0.5% + 4 digits)
1 MHz 1 kHz ± (0.5% + 4 digits)
10 MHz 10 kHz ± (0.5% + 4 digits)

Input sensitivity: 0.7V rms
Overvoltage protection: 250V DC / AC peak value


Temperature thermocouple: Type-K
Measuring range Resolution Accuracy
-40 ... 1000°C 1°C < 400°C ± (1.0% + 5 digits)
> 400°C ± (1.5% + 15 digits)
0 ... 1832°F 1°F < 752°F ± (1.0% + 5 digits)
> 752°F ± (1.5% + 15 digits)



Diode test Test current Test voltage Accuracy
About 0.8-mA Approx. 2.2V 5%

Surge protection: 600V DC / AC rms


Continuity test Test current Test voltage Accuracy
Approx. 0.4-mA Approx.3.3V 5%

Surge protection: 600V DC / AC rms
Beep at < 50 ?

Further specification
Display LCD display
Largest display 6000 (3 5/6)
Measuring rate 3 readings per second
Display at "OIL"
Overrange
Operating conditions 0 ... 50°C / 32 ... 122°F, < 80% RH non-condensing
Storage conditions -10 ... 50°C / 14 ... 122°F, < 80% RH non-condensing
Battery indicator Display when batteries are empty
Power supply 2 x 1.5V batteries
Dimensions 140 x 72 x 37 mm / 5.5 x 2.8 x 1.5 in
Weight Approx. 195 g / < 1 lb (with batteries)

Delivery Contents
1 x Digital multimeter PCE-DM 5
2 x 1.5V AAA batteries
1 x Pair of test leads
1 x Thermocouple type-K
1 x Instruction manual

Make:- PCE Instruments
