Flaw Detector PCE-FD 20
599,999
840 views
Description

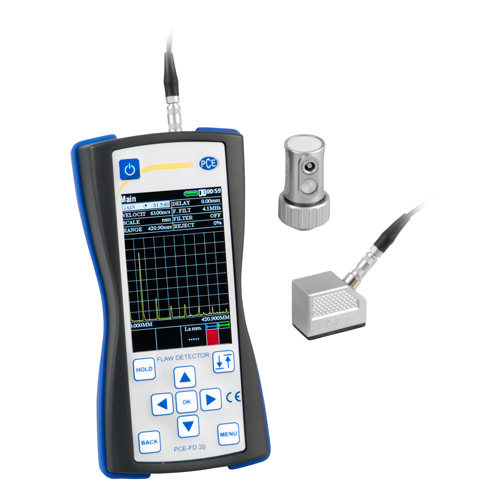

PCE-FD 20 is a portable ultrasonic flaw detector with a large LCD screen that displays A-scan maps of ultrasonic signals as well as B-scan cross sections. Ideal for use in mechanical engineering, aerospace and metallurgical applications, this high-frequency ultrasound-based defectoscope uses a contact transducer (two different probes included; 45° and 90°) to measure material thickness and identify flaws and defects such as discontinuity in welds.
- Operating frequency range: 1 ... 10 MHz
- Measured time interval range: 6 ... 1000 microseconds (µs)
- Sound velocity: 1000 ... 9999 m/s
- Implements shadow, echo and mirror-shadow testing methods
- Features a USB interface for downloading data to PC for detailed analysis
- Lightweight
- Battery or electric power
- 1.5 m long probe cable
Technical specifications
Operating frequency range
1 ... 10 MHz
Measure time interval range (scan duration)
6 ... 1000 microseconds (µs)
Sound velocity range
1000 ... 9999 m/s
Deviation of measurement of time intervals
Not exceed ± 0.025 µs
Max. deviation of amplitude of signals at receiver input in 0 ... 110 dB range
Not exceed ± 0.5 dB
Testing gain region
125 dB
Averaging over the quantity of starts
1 ... 16
Range of time-variable gain (TVG) / Number of control points TVG
40 dB / 15
Duration of excitation pulse to load
0 ... 0.5 µs
Amplitude of excitation pulse to 50 Ohm load, not less
100, 200, 300
Operating frequency range of receiver at -3 dB
1 ... 10 MHz
Deviation of amplitudes of input signals in 10 ... 100% range of screen height
Not more than 1 dB
Scanning
1 ... 1000 µs
Scanning delay
0 ... 2000 µs
Measurement range of time intervals
0 ... 1000 µs
Prism of probe delay
0 ... 15 µs
Automatic signaling of defects (AFS)
Dual-gate
Setting range of AFS gates
0 ... 2000 µs
Adjusting thresholds of AFS gates
0 ... 100%
Detection of signals (receiver)
Positive half-wave, radio mode
Dimensions of device (approx.)
80 x 162 x 35 mm / 3.14 x 6.37 x 1.37"
Dimensions display (approx.)
48 x 74 mm / 1.88 x 2.91"
Power supply
100 ... 250 V AC or 3 x 1.5 V AA batteries
Weight (approx.)
250 g / 0.55 lb (without batteries)
Delivery Scope
1 x PCE-FD 20 flaw detector
1 x probe cable (1.5 m long)
1 x contact transducer probe (90 °)
1 x contact transducer probe (45 °)
3 x 1.5 V batteries (AA)
1 x battery charger / electric power supply
1 x USB cable
1 x user manual
