Glow-wire Test Apparatus

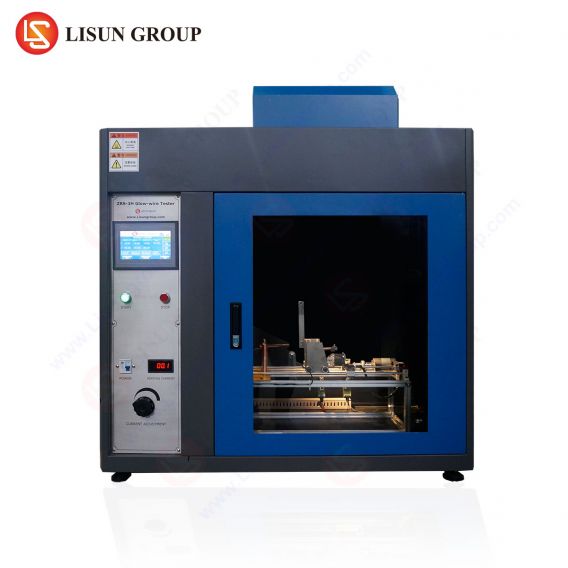

The ZRS-3H Glow-wire Test Apparatus is according to IEC60695-2-1, IEC60695-2-10, IEC60695-2-11, IEC60695-2-12, IEC60695-2-13 (GB/T5169.10, GBT5169.11, GBT5169.12, GB/T5169.13) < Basic testing methods of Glow wire, basic testing methods of Glow wire device>, UL 746A, IEC829, DIN695 and VDE0471. What is glow wire test? The Glow wire tester ZRS-3H/ZRS-3HS is suitable for resistance to abnormal heat and fire test on lighting lamps, electronic products and household appliances. It uses high-temperature coating spraying on steel structure and imported instrument display, with easy operation and stable performance. The glow wire testing equipment is applicable to flame resistance test of all levels of QC departments and corresponding enterprises. Specifications: • Heating temperature: adjustable continuously within the range of 25~1100°C, the accuracy of temperature is 1°C, the resolution of temperature is ±3°C • Glow-wire time: 0.1-999.9s?±0.1s(time range is adjustable) • Ignition time: 0.1-999.9s, auto record, manual pause • Flame-out time: 0.1-999.9s (auto record and manual pause) • Glow wire pressure on test specimen: 1±0.2N. Limiting pressure depth is 7mm • Glow wire: ?4 nickel (80?) and chromium (20?) Made in specific dimensions. • Thermocouple: ?0.5 armored nickel & chromium/nickel-chromium wire, K Type. • Automatic departure: While reaching specified glowing time, test specimen will depart from glow wire automatically.To save the delivery cost for the oversea market, LISUN designed a compact version glow-wire tester weighing less than 50kg. (Customer need to prepare additional ventilation system for ZRS-3HS)
