Needle Flame Test

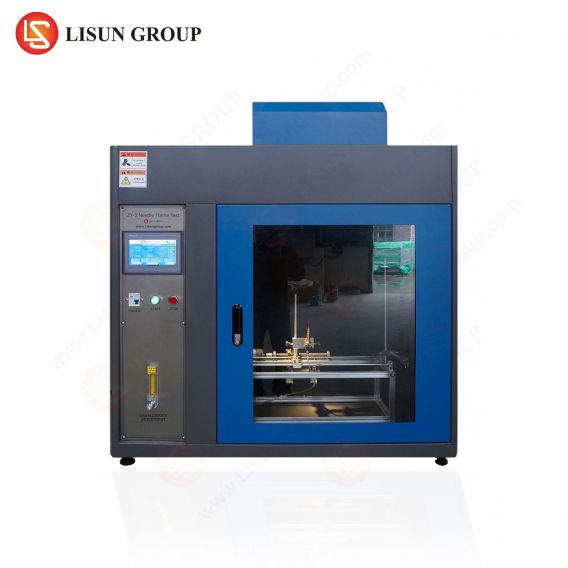

According to IEC60695-2-2, IEC60695-11-5, IEC62368-1 and GB/T-5169.5, ZY-3/ZY-3S needle flame test equipment is applied in the production and quality control department of lighting products, hyperpiesia electrical apparatus, domestic appliance, machine electric appliance, electrical machine, power tool, electronic instrument, electrician instrument and technical equipment. Also, the apparatus is suitable for the industry of insulation material, engineering plastics and solid combustible material.Specifications: • Angle of burner: 45° (when in test) / 0° (when adjust the flame’s height) • Needle flame burning time: 0~999.9s±0.1s (adjustable, 30s in general) • After-flame time: 0~999.9s±0.1s, auto record and pause manually • Height of flame: 12mm±1mm (gauge is included) • Gas: 95% butane • Test range of temperature: 0~1000? • The temperature rises from 100?±2? to 700?±3? within 23.5 seconds±1s • Thermocouple: ?0.5mm K type • Applied with touch screen and remote control • Number of burning times for a single test: single or multiple times can be set LISUN ZY-3 needle flame tester can run multiple times flame test in a single test automatically according to the Annex S S.1 of the IEC62368-1 standard
